Toyota 1GZ V12 ITB Intake Manifold


Style: Left Hand Cable
Price:
$7,600

Description

Want to make your 1GZ V12 sound like an early 90s Formula One Car, or a McLaren F1?

... you are going to need a set of these.



If you have seen or heard some of our own inhouse built 1GZ V12 engines, you will know how they look and sound. (we think its pretty good)

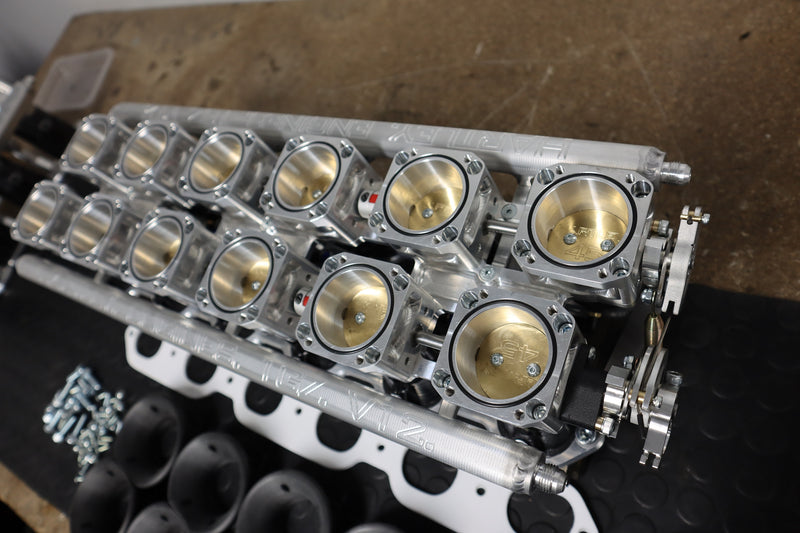

All our Throttle Bodies, Butterflies, shafts, Fuel Rails and linkages are made inhouse and machined on our 5axic CNC mill.

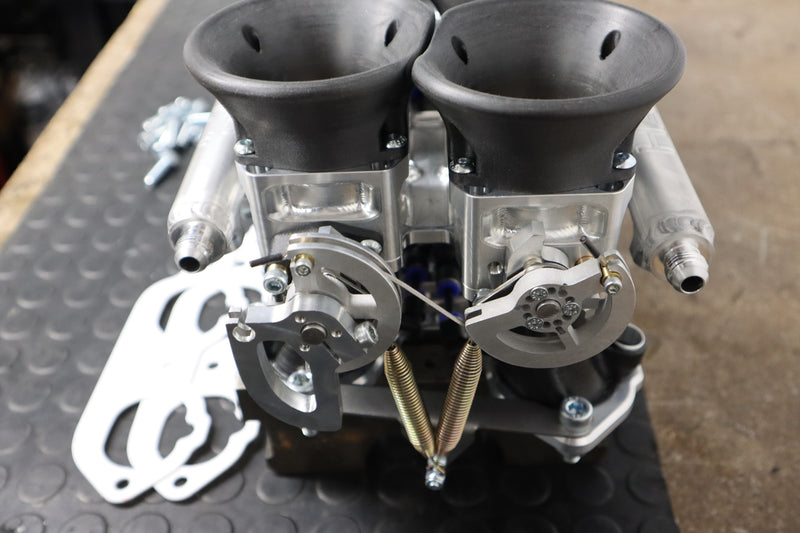

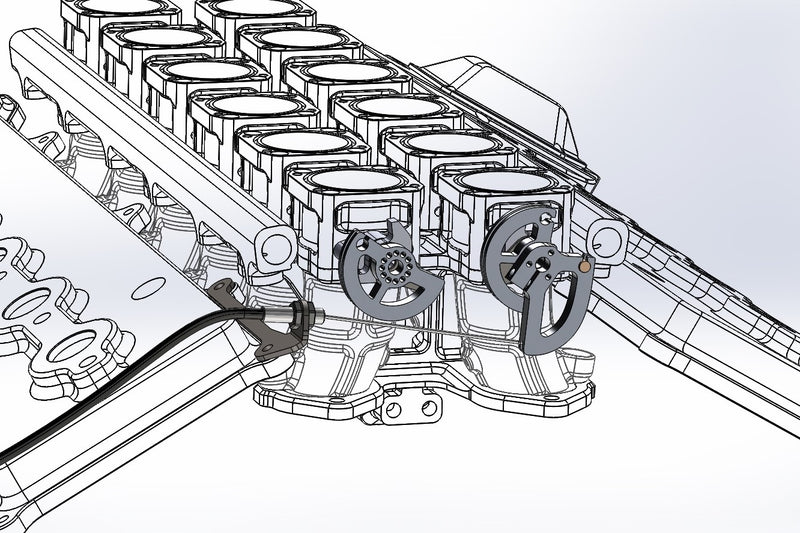

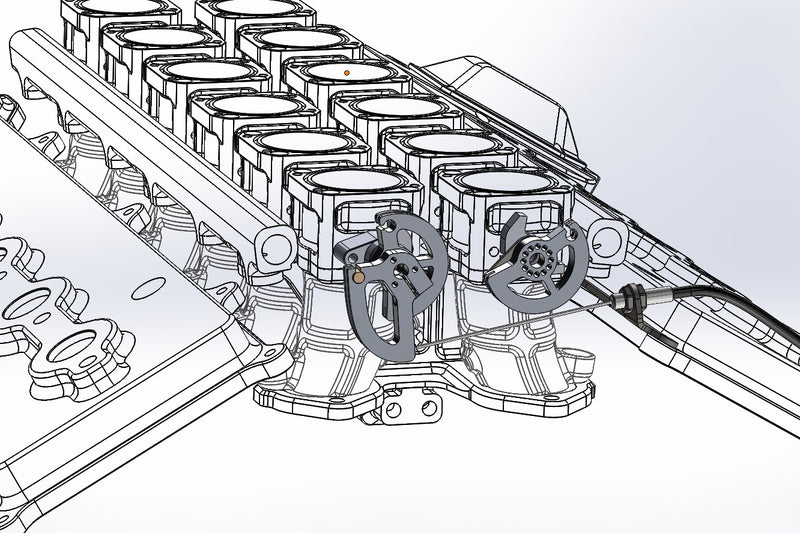

Intakes setup for the cable to come from either the Left or the Right.

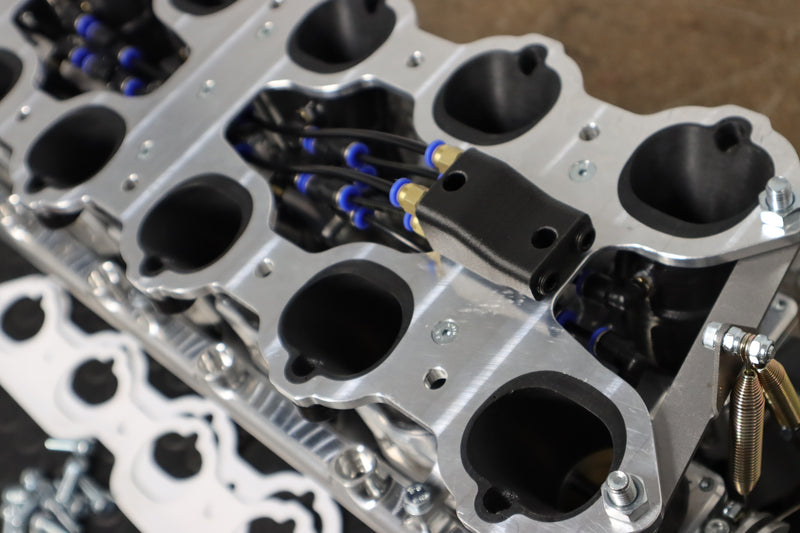

The lower intake is made through a unique manufacturing process that we have spent over 3 years developing, it is a hybrid of billet 6061 T6 Aluminium, and Carbon Fibre reinforced Polymer... It is a moderately complicated process, and we do it for very good reason. Check out our blog for more information on how and why we persevered with it!

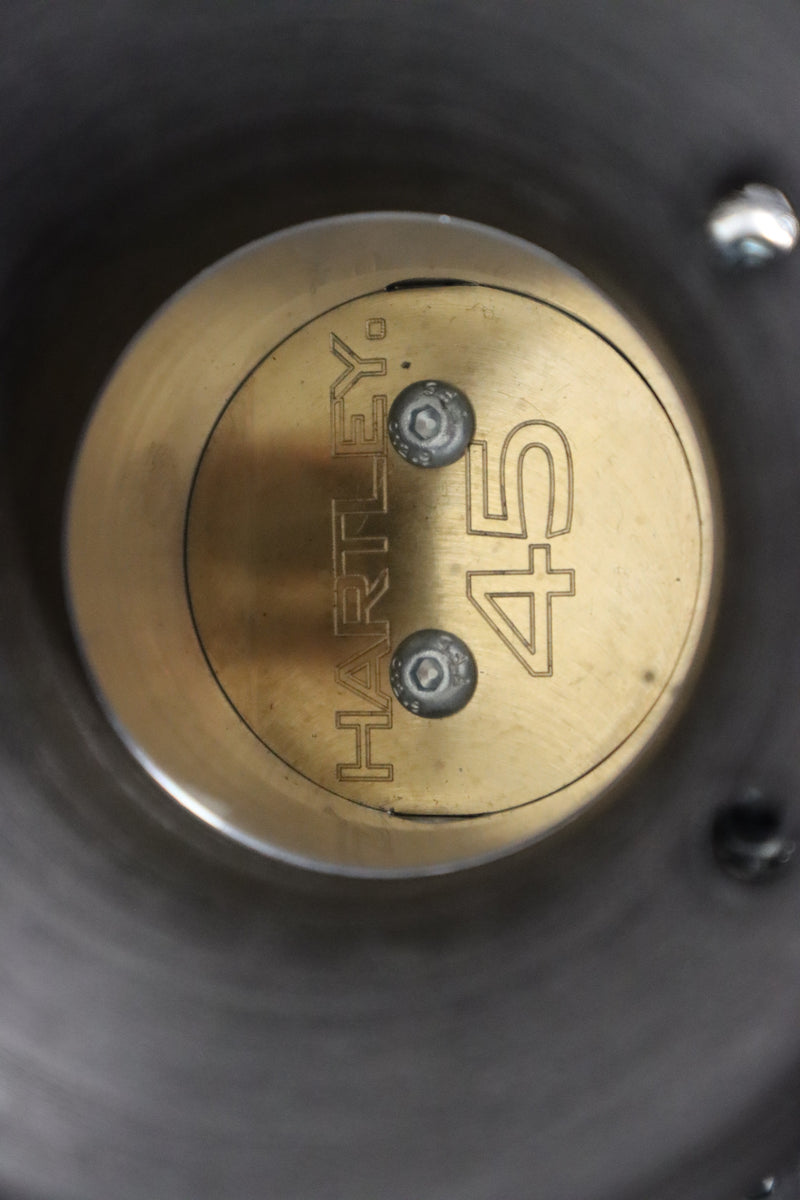

*45mm OD Butterflies

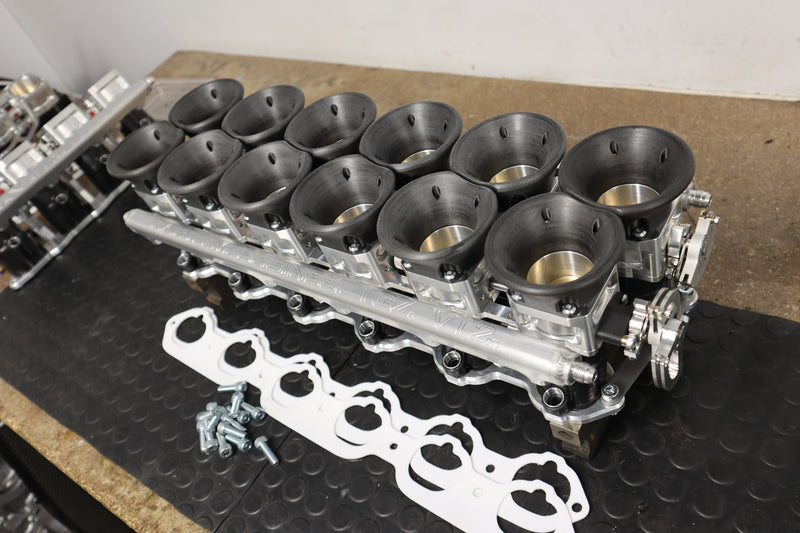

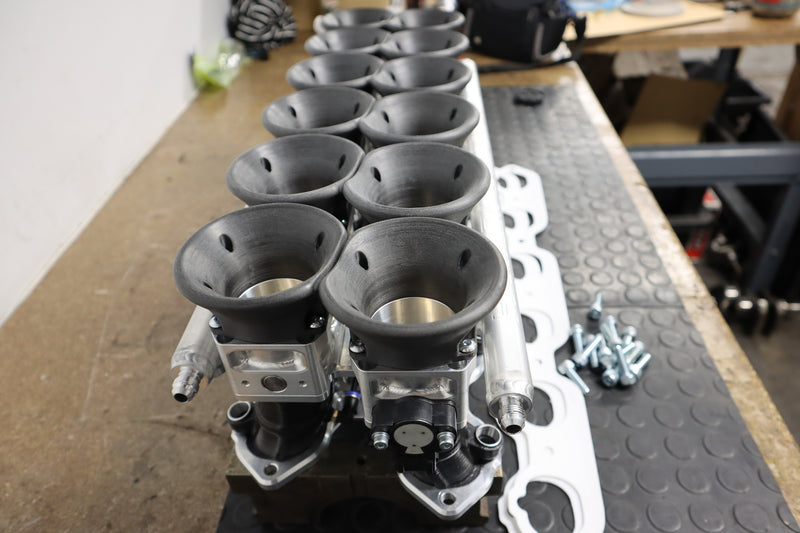

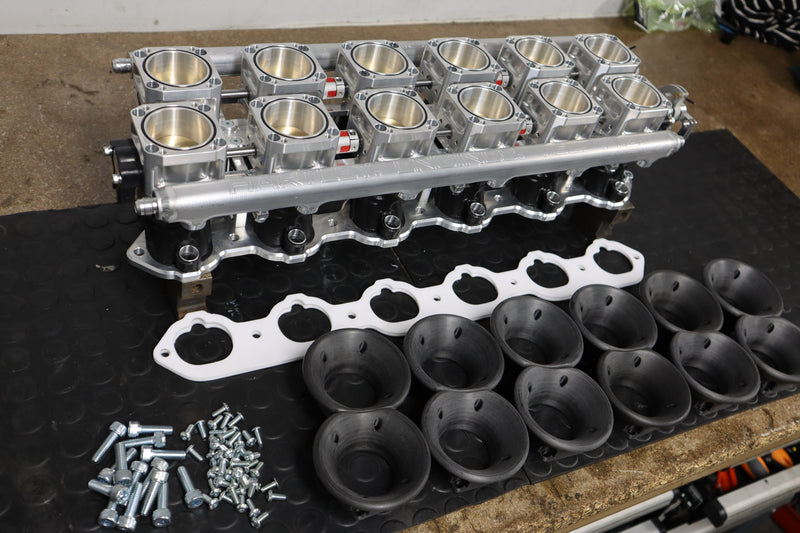

*Ships with Fuel Rails, Throttle Position Sensor, O-Rings, PTFE gaskets, Trumpets, Fasteners, Vacuum/MAP lines with 2x 1/8NPT outputs and Cable Bracket (choose left or right).

*Air Filters will be available shortly.



*Typical lead time is 2-3 weeks from time of order.
